Snapdragon™ 8 Elite Mobile Platform Display Card - LANTRONIX CANADA, ULC


Snapdragon™ 8 Elite Mobile Platform Display Card

Lantronix

QC-HDK-8750-D

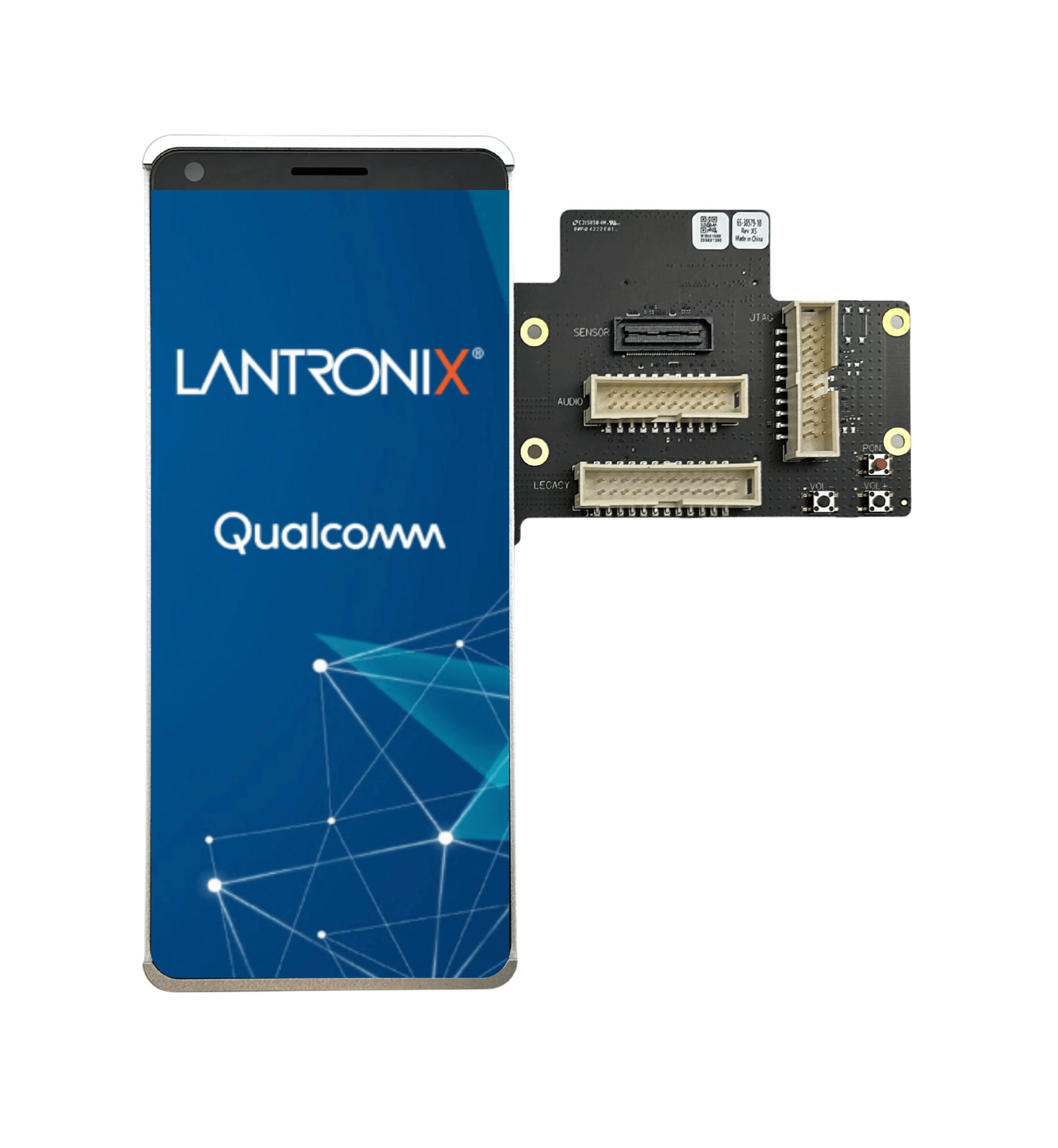

The display card consists of an FHD+ LCD capacitive touch display and expansion card supporting extended audio connectors, sensor connectors and secondary camera connector.

Compatible with the Snapdragon™ 8 Elite Mobile Platform.

  • Resolution: FHD+ 1080 x 2400
  • Size: 6.8 inches
  • Display Type: AMOLED
  • I2C or SPI for capacitive touch panel together with interrupts
  • Dual MIPI DSI interface
  • Copies of Power on, Vol+/- buttons of the main board
  • Sensor-3 expansion connector for standard 60-pin GenX (I3C, I2C, SPI, INTs, powers for sensor)
  • Sensor-4 connector for legacy 24-pin sensor card (I3C, I2C, SPI, INTs, powers for sendor)
  • JTAG connector

Note: The picture is for illustration purposes only. We will have a picture of the product available shortly.
