Open-Q™ 845 µSOM (Micro System on Module) - LANTRONIX CANADA, ULC

Open-Q™ 845 µSOM (Micro System on Module)



Contact us for lead times.

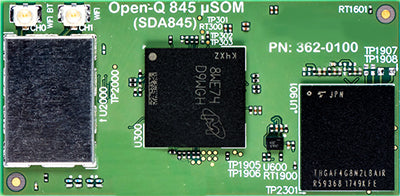

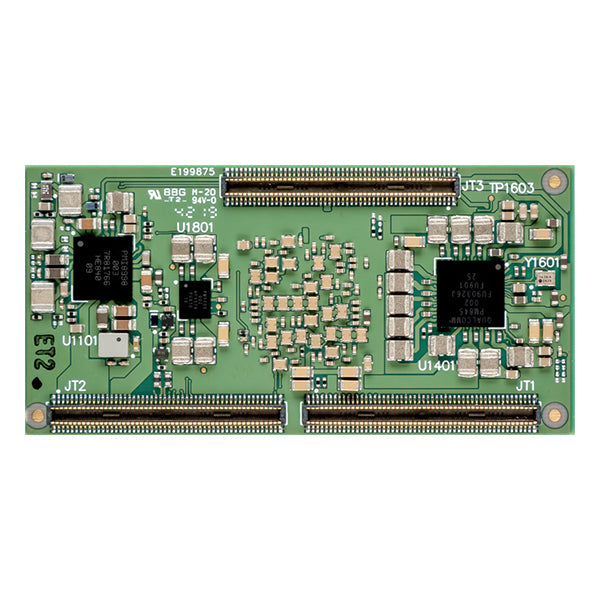

Lantronix’s Open-Q™ 845 μSOM is an ultra-compact (50mm x 25mm) production-ready SOM based on the powerful Qualcomm® Snapdragon™ SDA845 SoC. With the 3rd-Gen Qualcomm® AI Platform, Spectra™ ISP, Kryo™ Octa-core CPU, Hexagon™ DSP, and a new dedicated secure processor, the 845 μSOM is ideal for powering the most advanced robotics, drones, cameras, and embedded IoT devices.


In addition to the 845’s impressive processing capabilities and on-device AI powers, it also includes new and improved I/O interfaces compared to previous Snapdragon™ generations — four-camera ports, two USB3.1 ports (including 4K60 DisplayPort + concurrent SS data), and a Gen3 PCIe interface.

The 845 μSOM is available in two versions with different memory sizes:
Standard: 4GB RAM + 32 GB Flash
Expanded: 6GB RAM + 64 GB Flash


See companion Open-Q™ 845 μSOM Development Kit

See full product specifications HERE

Optional audio codec LGA module for use on carrier boards HERE
