SA515M-based Qualcomm® Connected Car Application Reference Design (CCARD)

Lantronix

QC-V2X-515

All CCARD orders are subject to Qualcomm approval.
Place your order to begin the approval process.

The SA515M-based CCARD is the first telematics solution with a 5G modem, supporting up to 200 MHz bandwidth (sub-6 GHz), Dual SIM Dual Active, CV2X concurrency, and multi-frequency GNSS (gen 9 core) along with dead reckoning GNSS.

The CCARD’s near-commercial grade telematics control unit (TCU) provides high-speed wide area networking (WAN) connectivity, allowing automakers to leverage telematics functionality when developing their connected vehicle solutions.

To streamline software development the CCARD also supports the Snapdragon® Telematics Application Framework (TelAF), giving developers access to a rich set of application programming interfaces (APIs) for developing telematics applications. Developers can also utilize the CCARD’s peripheral debug ports, serial console interface, and USB debug port for application testing.

Major Features Include:

  • SA515M 5G modem
  • SA2150P application processor

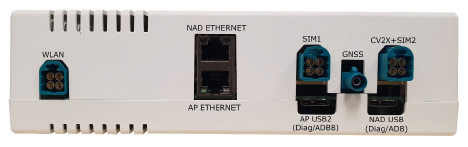

  • Two 4-wire GbE Ethernet ports
  • QCA6595 802.11ac DBS (dual MAC)
  • USB 3.1, USB 3.0, USB 2.0
  • Secure digital interface

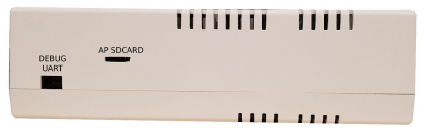

  • UART, JTAG

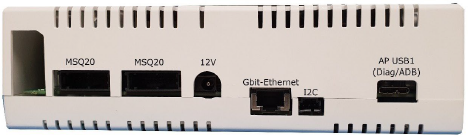

  • Interconnection system MQS 20
  • WAN, GNSS, WLAN
